- This product is widely used in pharmaceutical production lines for high accuracy weighing
- The checkweigher monitors manufacturing efficiencies and provides real time data to your process. Product completeness and trends also provide feedback data to the production line
- It is also used in the application of checking the completeness of a secondary package to identify any missing parts or items.
You need to make sure that all the products leaving your production line are complete and accurate, but it’s hard to keep track of everything.
It’s tough to know if you’re losing money because of inaccurate or incomplete products, but with the Triton Checkweigher 100g you can rest assured that your products are always weighed accurately.

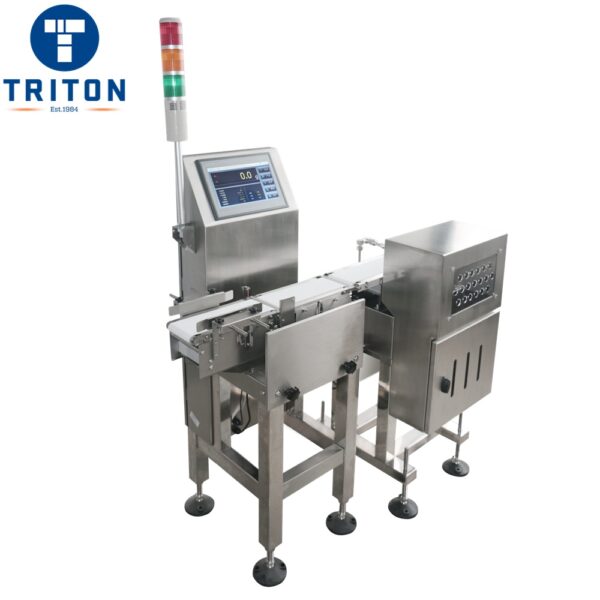

The Triton CW-100g Checkweigher 100g is a top-of-the-line product that will save you time and money by ensuring accuracy and completeness in your product lines. With real time data and feedback loops, you’ll be able to improve your manufacturing process quickly and easily.
Scale Division | 0.05 Gram |
Weighing range | 5~300g |
Accuracy | ±0.2g |
Weighing speed | 180pcs/min |
Belt speed | 5~90meter/min |
Plaform size | 275x133mm |
Height | 830±50mm |
Belt size | 250x100mm |
Belt material | PU (White) |
Belt thickness | 0.7mm |
Tested object size | 50~180×20~80x 10~150mm |
Display size | 10inch |
Alarm light | 3-color signal light |
Alarm horn | optional |
Holder/Frame material | 304 stainless steel |
Weigher platformmaterial | 304 stainless steel |
Data storage | 100 sets of parameters and 1 million weighing results |
Communication | RS485 (Modbus RTU)/Modbus TCP/IP |
Rejection mechanism | swing~arm type.air blowing type (optional) |
Segments | 3 levels |
Air pressure | 0.4~0.6 Mpa |
IP grade | IP54 |
