- Heavy load heavy duty, for bags, boxes and more.
- Weighs up to 60kg within 10gram increments.
- Strong structure for harsh environments, optional S304 or S316 structure, optional stainless loadcell.
- Using 4 loadcells for the platform, with variable mounting position for high accuracy under rough environment.
- Flexible Modbus communication to integrate with computer scanner, dimension measure device and so on.
- Non trade.
You need to weigh large items, but don’t want to break the bank.
It can be tough to find a good quality checkweigher that doesn’t cost an arm and a leg.

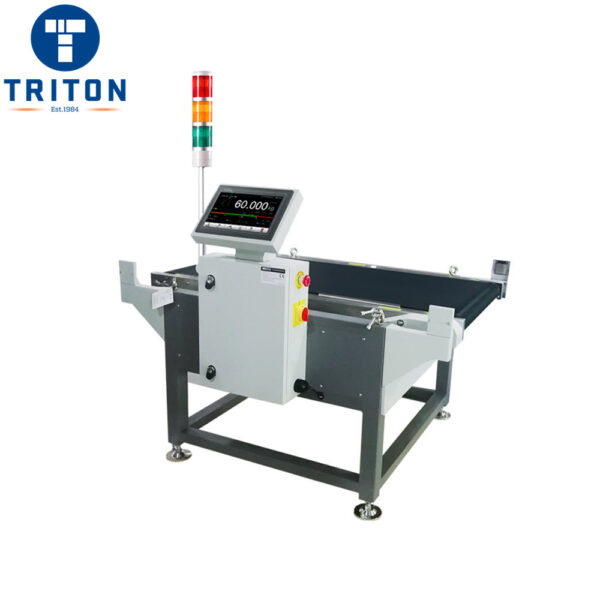

The Triton Checkweigher CW60K 60kg is perfect for your needs. This heavy-duty checkweigher can weigh up to 60kg within 10gram increments, making it perfect for bags, boxes, and more. Plus, it comes with a strong structure for harsh environments, so you can rest assured that your checkweighing needs are taken care of.
| Scale Division | 2 Gram |
| Weighing range | 0.1 ~60 Kg |
| Accuracy | ±lOg |
| Weighing speed | S0pcs/min |
| Belt speed | 10~60meter/min |
| Plaform size | 1280x710mm |
| Height | 750±50mm |
| Belt size | 1200x600mm |
| Belt material | PVC (Black) |
| Belt thickness | 2mm |
| Tested object size | 100~ l000x S0~SS0x 50~550mm |
| Display size | 10inch |
| Alarm light | 3-color signal light |
| Alarm horn | optional |
| Holder/Frame material | carbon steel paint |
| Weigher platformmaterial | 201 stainless steel |
| Data storage | 100 sets of parameters and 1 million weighing results |
| Communication | RS485 (Modbus RTU)/Modbus TCP/IP |
| Rejection mechanism | user customized |
| Segments | user customized |
| Air pressure | user customized |
| IP grade IP54 | |
