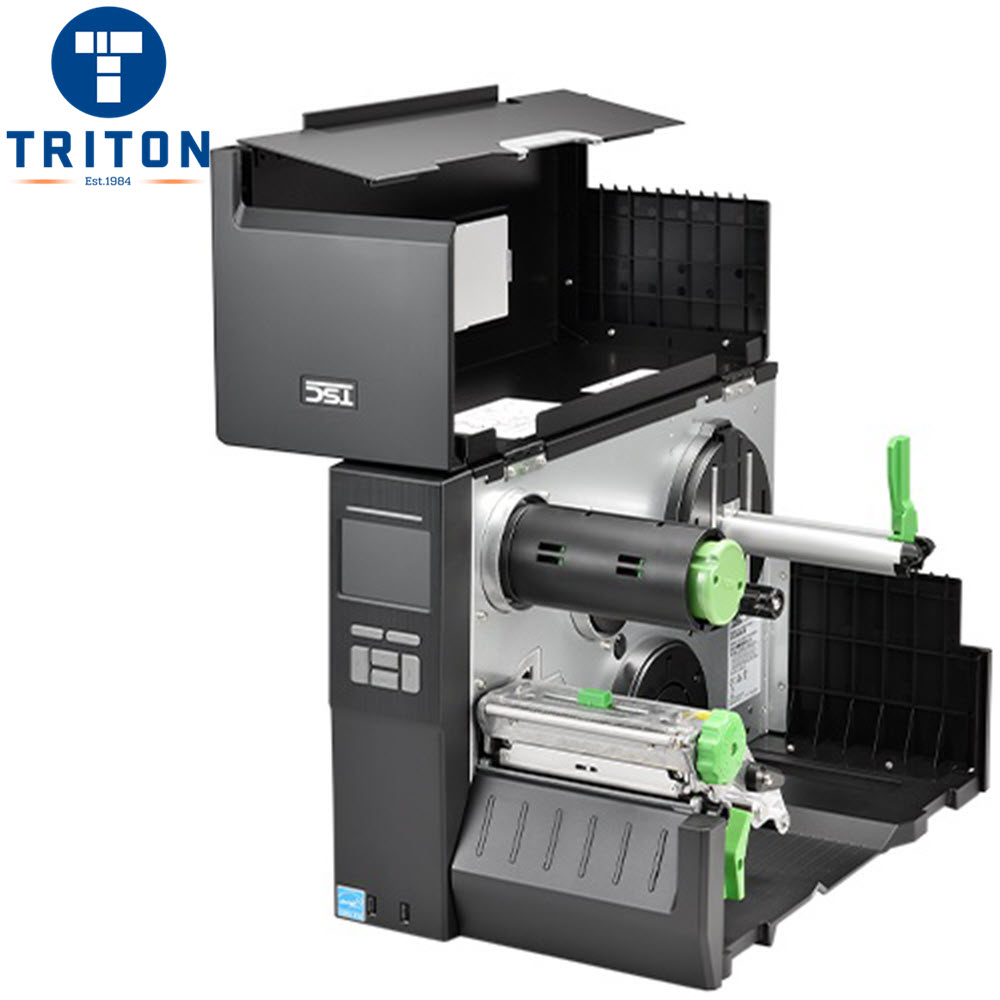

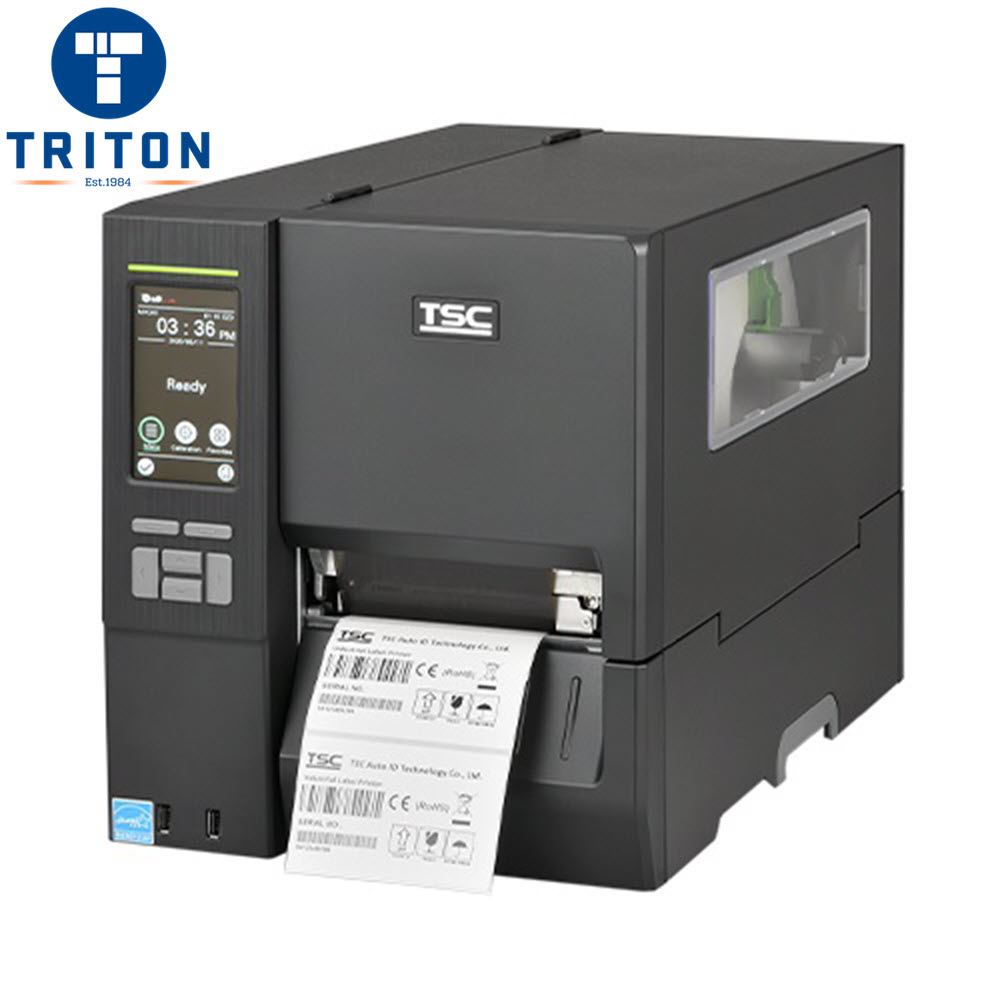

TSC MH641T-A001-0004 – Ultra High-Resolution Industrial Label Printer
The TSC MH641T-A001-0004 is a powerful industrial-grade label printer engineered to meet the most demanding applications where precision, speed, and durability are paramount. Featuring an industry-leading 600 DPI resolution, robust build quality, and an intuitive touchscreen interface, the MH641T offers unmatched performance in high-resolution labeling environments.
Product Overview
Designed to handle complex labeling tasks with ease, the MH641T combines cutting-edge print technology with enterprise-level manageability. With its 24 dots/mm resolution, this printer delivers ultra-sharp text, detailed graphics, and micro barcodes suitable for electronics, healthcare, and high-precision manufacturing environments.
Key Features
- High Definition 600 DPI Printing
Delivers razor-sharp text and intricate images, ensuring barcodes and graphics are rendered with pixel-perfect accuracy. - Smart User Interface
Equipped with a vibrant 4.3” color LCD touchscreen, providing intuitive controls and real-time status updates for simplified operation. - Advanced Memory Architecture
Comes standard with 256MB SDRAM and 512MB Flash, expandable via microSD (up to 32GB), allowing faster data processing and handling of large, complex label formats. - Versatile Connectivity
Includes USB, RS-232, Ethernet, USB Host, and optional Wi-Fi and Bluetooth MFi, making integration seamless across diverse environments and platforms. - Media Intelligence
Features Media Near End sensor for proactive label stock management, and Top Black Mark (Top BM) sensing for precise label alignment. - Durable Industrial Design
Rugged die-cast print mechanism and metal housing with a bi-fold cover make it ideal for high-volume use in harsh industrial conditions. - Print Performance
Speeds of up to 6 inches per second (152 mm/s) and support for labels up to 4.09” wide and 100” long. - Enterprise-Ready Management Tools
Compatible with TSC Console and SOTI Connect (license required) for centralized device management and monitoring in enterprise environments.
Ideal Applications
- Manufacturing & Industrial
Work-in-process labels, compliance tags, product ID, and tracking labels. - Logistics & Warehousing
Shipping and receiving, inventory tracking, bin location, and packing labels. - Retail & Distribution
Product labeling, shelf-edge labels, and promotional barcodes. - Healthcare
Asset management, specimen labeling, and compliance tracking.
Technical Specifications Summary
Feature | Specification |
---|---|
Print Resolution | 600 dpi (24 dots/mm) |
Print Method | Thermal Transfer / Direct Thermal |
Max Print Speed | Up to 6 ips (152 mm/s) |
Max Print Width | 4.09” (104 mm) |
Max Print Length | 100” (2,540 mm) |
Memory | 256MB SDRAM, 512MB Flash, expandable via microSD (up to 32GB) |
Display | 4.3” Color LCD Touchscreen |
Connectivity | USB, RS-232, Ethernet, USB Host; optional Wi-Fi and Bluetooth |
Construction | Die-cast aluminum mechanism, metal cover with media view window |
Programming Languages | TSPL-EZD |
Management Tools | TSC Console, SOTI Connect (license required) |
Why Choose the TSC MH641T-A001-0004?
With its top-tier print resolution, robust construction, and enterprise-grade connectivity, the MH641T is a versatile, future-ready labeling solution. It provides businesses across industries with the confidence to print mission-critical labels accurately and efficiently—day in and day out.
For a comprehensive overview of this product, please visit the TSC MH641 printer product page.
Enquire now about a TSC Global Service Program to suit this printer!
