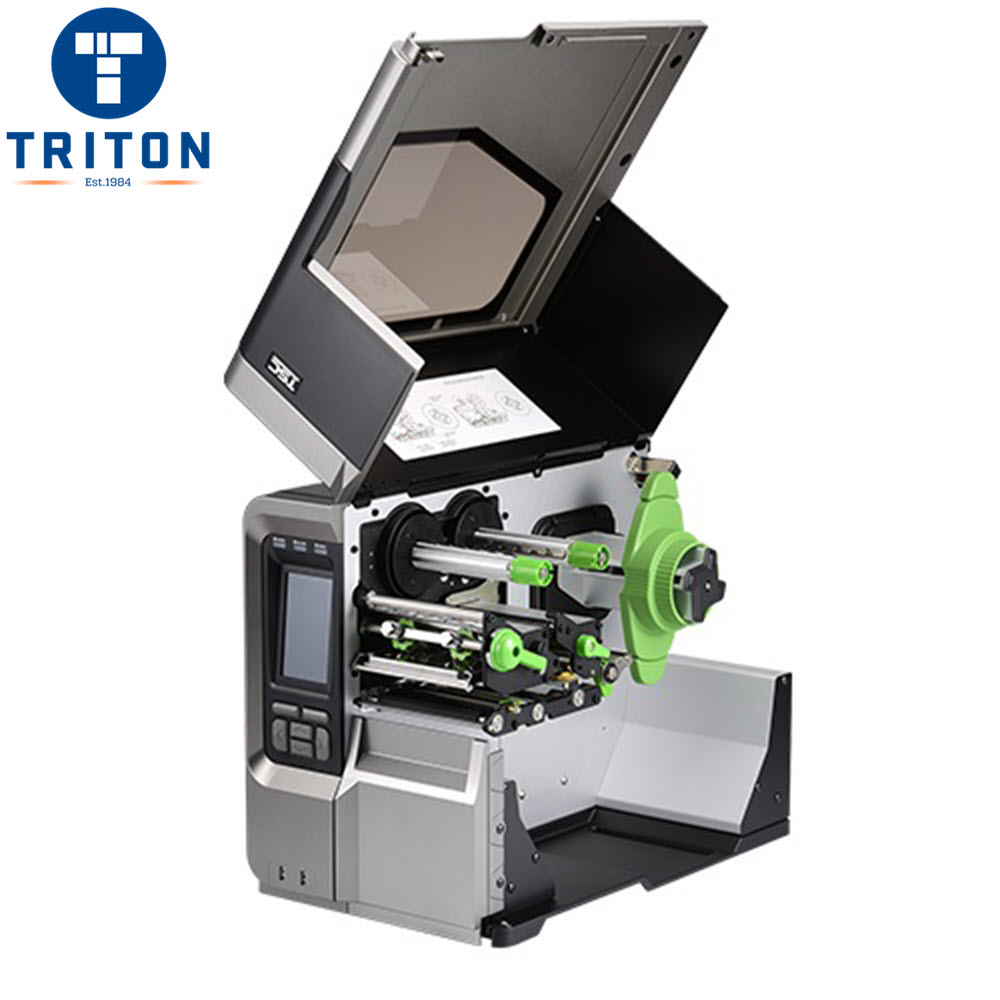

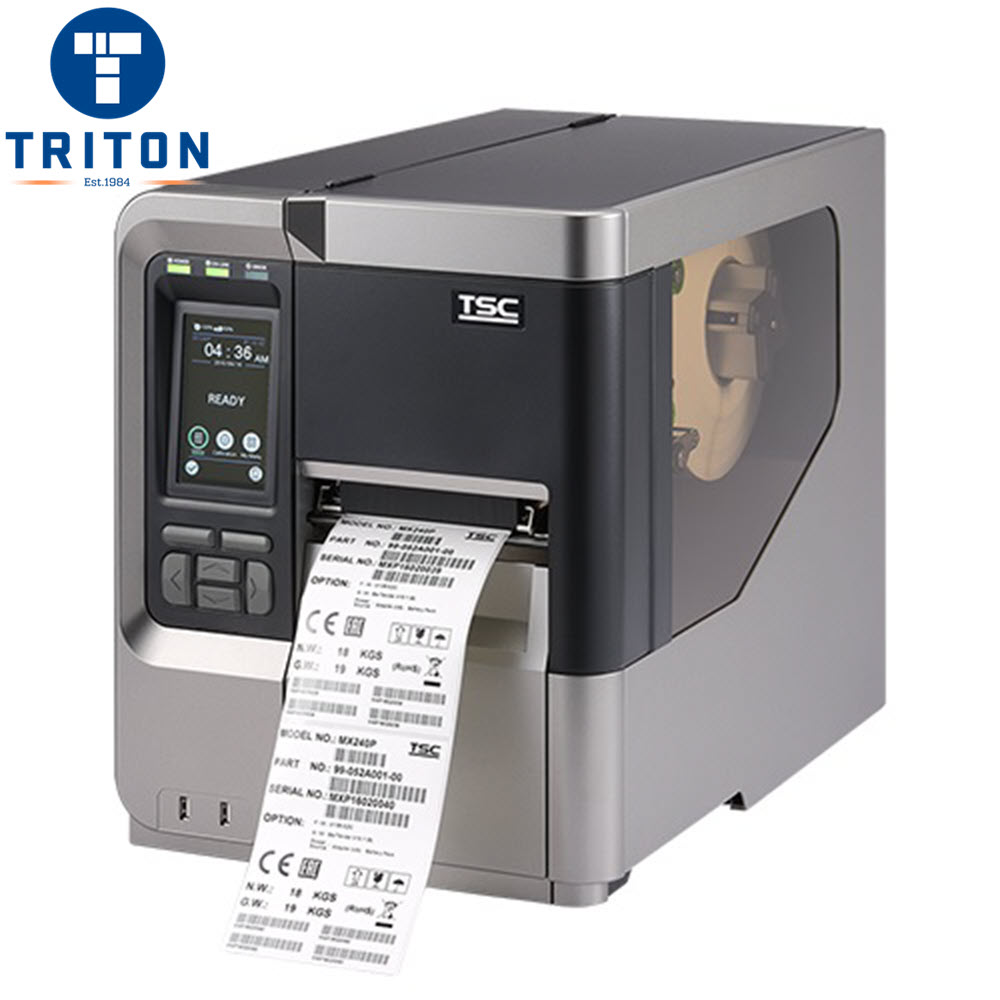

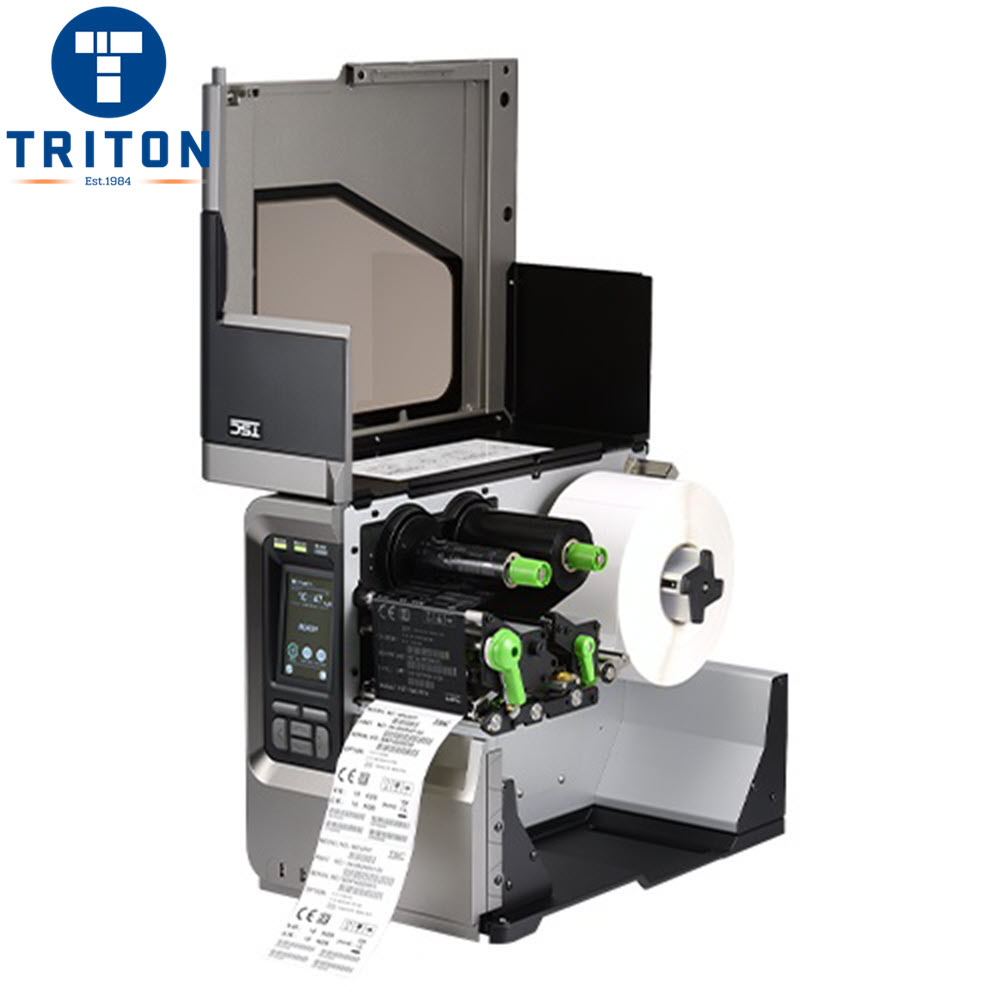

TSC MX641P-A001-0054 – Wi-Fi Ready High-Resolution Industrial Label Printer (600 DPI)

The TSC MX641P-A001-0054 is a Wi-Fi ready, high-resolution industrial label printer built for demanding, high-volume environments where precision and performance are paramount. Featuring a stunning 600 DPI resolution, dual-mode thermal printing, and robust connectivity—including integrated Wi-Fi housing—this printer offers unmatched versatility and output quality for mission-critical labeling operations.

Product Overview

As part of TSC’s elite MX Series, the MX641P-A001-0054 combines ultra-fine print detail with powerful hardware and an intelligent user interface. It is designed for applications where clarity, reliability, and throughput matter most—such as electronics labeling, medical device marking, and high-density barcode generation.

With Wi-Fi housing pre-installed, this model offers the flexibility to operate on wireless networks, streamlining integration and enabling mobile or cable-free configurations in fast-paced production environments.

Key Features

• 600 DPI Ultra-High Resolution
  Delivers industry-leading clarity for micro text, complex graphics, and high-density barcodes, ensuring readability and professional presentation in every print.
• Dual Print Technologies
  Supports both Thermal Transfer (for long-lasting, archival-grade labels) and Direct Thermal (for simplified, ribbon-free printing), offering unmatched media flexibility.
• Wi-Fi Ready with Bluetooth MFi Support
  Integrated Wi-Fi housing enables seamless wireless deployment (Wi-Fi module required), while Bluetooth MFi support allows quick device pairing for mobile printing solutions.
• Intuitive User Interface
  Features a 4.3” color touchscreen LCD with tactile control buttons, enabling quick setup, easy configuration, and at-a-glance monitoring.
• Enterprise-Grade Memory & Storage
  Equipped with 512MB DRAM and 512MB Flash, expandable via microSD (up to 32 GB)—ideal for storing large label formats, fonts, and graphics.
• Versatile Connectivity Options
  Standard ports include USB, USB Host, RS-232, Ethernet, GPIO, and Parallel, allowing seamless integration into existing industrial networks and devices.
• Advanced Media Handling
  Designed for larger media rolls, with Top Black Mark (Top BM) sensing for precise label registration and an 8” internal rewind for efficient roll management.
• Rugged Industrial Build
  Constructed with a die-cast print mechanism and metal bi-fold housing featuring a large media view window—built to handle 24/7 operation in challenging environments.
• Centralized Fleet Management
  Fully compatible with TSC Console and SOTI Connect (license required), supporting enterprise-level remote monitoring, diagnostics, and firmware updates.

Applications

Technical Specifications Summary

Why Choose the TSC MX641P-A001-0054?

The TSC MX641P-A001-0054 is the ultimate industrial printer for businesses that demand ultra-high resolution, wireless flexibility, and uncompromising performance. With a premium 600 DPI output, built-in wireless capabilities, and a rugged design ready for any industrial challenge, it’s the ideal choice for precision-critical labeling environments.

Whether you’re printing tiny barcodes on circuit boards or long-lasting compliance labels, the MX641P Wi-Fi Ready model delivers maximum print quality, connectivity, and uptime—every single day.
