TSC TTP 286MT Printer 203 DPI

**For lead times and pricing information, please contact us directly.**

SKU:

NZFGPRI-TSCTTP286MT203ETH

Part number:

99-135A002-0004

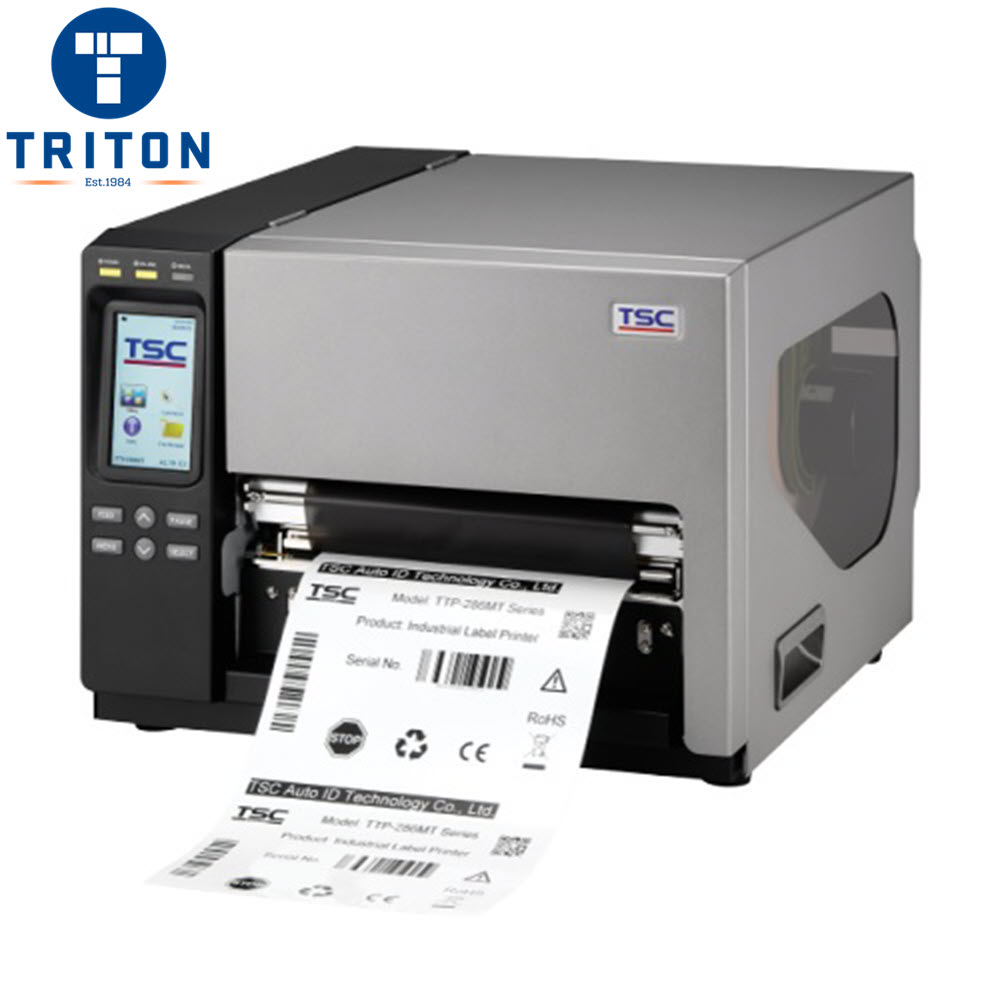

TSC TTP 286MT Industrial Printer – 8” Wide Format, 203 DPI

High-Volume, Wide-Format Printing Redefined

The TSC TTP 286MT is a robust, high-performance industrial label printer built for demanding applications that require wide-format output, high-speed performance, and enterprise-level connectivity. Engineered to handle 8-inch print widths with stunning clarity at 203 dpi resolution, this powerhouse is optimized for heavy-duty tasks in manufacturing, logistics, retail, and healthcare environments.

Equipped with a 4.3” color touchscreen, large onboard memory, and extensive I/O options, the TTP 286MT is the ultimate solution for industrial users who demand efficiency, flexibility, and durability in their label printing operations.



Key Features & Advantages

  • High-Resolution, Wide-Format Printing
    With 203 dpi resolution (8 dots/mm) and a maximum print width of 8.5 inches (216 mm), the TTP 286MT is perfect for large labels, compliance markings, pallet identification, and warehouse signage—producing crisp barcodes, text, and graphics with professional-grade accuracy.
  • Industrial-Grade Speed and Throughput
    This printer delivers high-volume output with a maximum print speed of 6 inches per second (152 mm/s), reducing downtime and boosting operational efficiency.
  • Intuitive 4.3″ Color Touchscreen Display
    The full-color LCD interface offers fast and intuitive navigation for configuration, job selection, and real-time status monitoring—minimizing training and setup time for operators.
  • Massive Memory Capacity for Complex Jobs
    With 256 MB SDRAM and 512 MB Flash memory, and expandable storage via SD card (up to 32 GB), the TTP 286MT supports complex label designs, large fonts, and high-resolution images with ease.
  • Comprehensive Connectivity
    Easily integrate into any industrial system with a broad range of standard connections, including:

    • USB 2.0
    • USB Host
    • RS-232 Serial
    • Parallel Port
    • Ethernet
    • GPIO
      Optional Bluetooth wireless connectivity adds flexibility for mobile printing setups or dynamic factory floor deployments.
  • Industrial-Strength Design

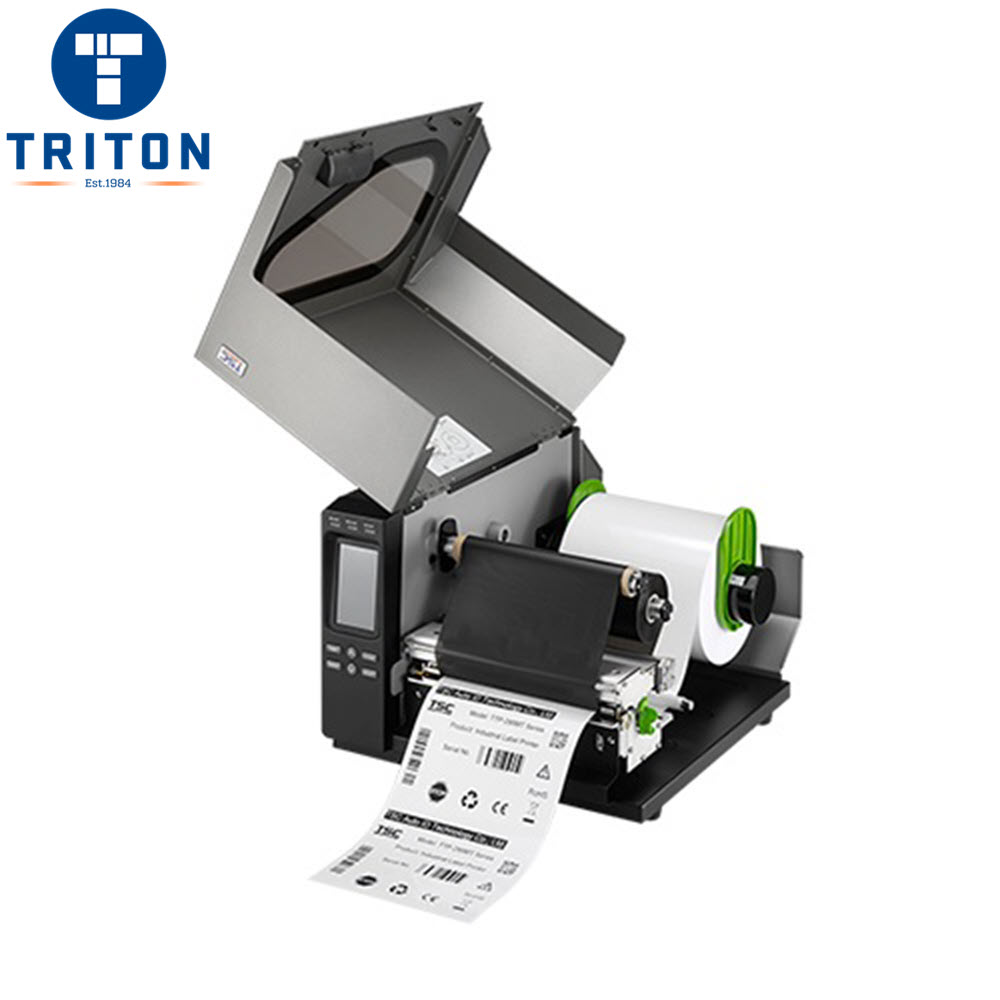

    Built to withstand harsh industrial environments, the TTP 286MT features a rugged die-cast chassis and sheet metal housing, plus a clear media window for quick visual inspection of label stock levels.
  • Enterprise Management Ready
    Managed with TSC Console, the printer offers centralized monitoring, diagnostics, and configuration for single or fleet deployments—ideal for multi-site operations.
  • TSPL-EZD Firmware Compatibility
    Supports major printer languages including TSPL-EZ™, EPL, ZPL, and DPL, ensuring seamless integration with existing applications and legacy systems.





Ideal Applications

The TSC TTP 286MT is purpose-built for high-demand industries that require wide-format, high-resolution labeling:

Manufacturing

  • Product marking
  • Work-in-progress labels
  • Quality/compliance labels

Logistics & Warehousing

  • Pallet and container labeling
  • Inventory control
  • Shipping/receiving tags

Retail

  • Oversized product and shelf labels
  • Price markdowns
  • Bulk packaging

Healthcare

  • Asset identification
  • Laboratory and specimen labeling
  • Equipment tagging





Product Specifications – Model: 99-135A002-0004 | 99135A0020004

Feature Specification
Print Technology Thermal Transfer & Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Max Print Width 8.5″ (216 mm)
Max Print Length 450″ (11,430 mm)
Print Speed Up to 6 ips (152 mm/s)
Memory 256 MB SDRAM, 512 MB Flash
Expandable Storage SD card up to 32 GB
Display 4.3″ Full-Color LCD Touchscreen
Connectivity USB, USB Host, RS-232, Ethernet, Parallel, GPIO
Wireless Connectivity Bluetooth (optional)
Construction Die-cast chassis, sheet metal, clear media window
Enterprise Management TSC Console
Programming Languages TSPL-EZD (ZPL, EPL, DPL compatible)
Printer Type Industrial







Conclusion

The TSC TTP 286MT is the ultimate solution for businesses needing reliable, wide-format label printing in tough industrial environments. With high-speed output, superior memory, robust construction, and intuitive touchscreen operation, it delivers everything you need for mission-critical labeling—on time, every time.

Think big. Print bigger. Choose the TSC TTP 286MT.



Enquire now about a TSC Global Service Program to suit this printer!

TSC Global Service Program

TSC TTP 286MT Spec Sheet

TSC Console User Manual

**This printer will take Thermal Transfer (needs a ribbon) & Direct Thermal Labels**

See more Direct Thermal labels for this printer!

See more Thermal Transfer labels for this printer!

Media Specifications:
Internal Label Capacity 8.2“ (208.3 mm) OD
Max. Media Width 9.5″ (241.3 mm)
Media Type Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)
Media Core Diameter 3″ (76.2 mm)
Min. Label Length 1″ (25.4 mm)

See Thermal Transfer Ribbons for this printer!

Ribbon Specifications:
Max. Ribbon Length 600 m
Ribbon Width 4.3“ – 10“ (110 mm – 254 mm)
