TSC TTP 384MT Printer 300 DPI

**For lead times and pricing information, please contact us directly.**

SKU:

NZFGPRI-TSCTTP384MT300ETH

Part number:

99-135A001-0004

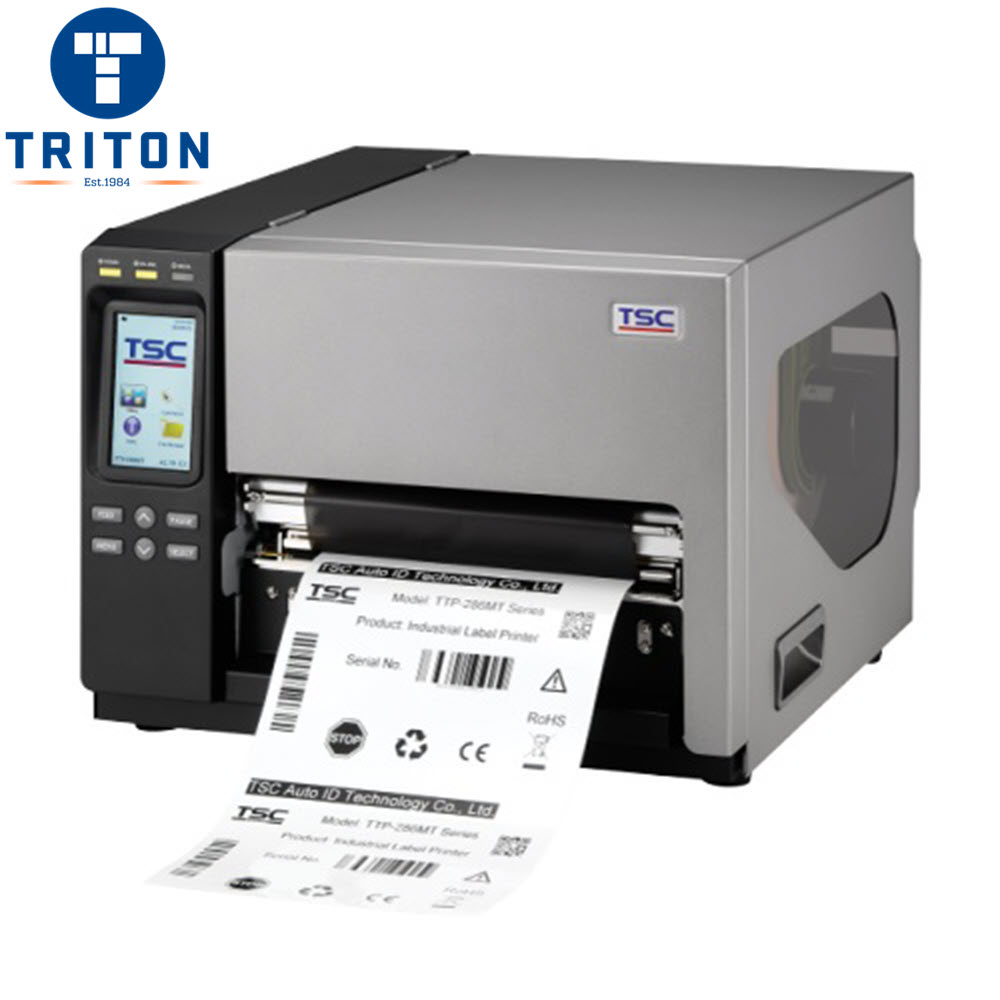

TSC TTP 384MT Industrial Printer – 8″ Wide Format, 300 DPI

Precision Labeling for Industrial Power Users

The TSC TTP 384MT is a wide-format, high-resolution industrial label printer designed for organizations that demand exceptional print quality, durability, and versatility in high-volume environments. With a 300 dpi resolution and a generous 8.64-inch maximum print width, the TTP 384MT excels at producing clear, compliant, and professional-grade labels for applications in manufacturing, logistics, healthcare, and retail.

From compliance labeling to oversized packaging and pallet marking, this heavy-duty printer is your go-to solution when only the best in precision and performance will do.



Key Features & Advantages

  • High-Resolution 300 DPI Output
    Featuring 300 dpi (12 dots/mm) resolution, the TTP 384MT delivers exceptionally crisp barcodes, fine-text labels, and high-contrast graphics—essential for compliance, branding, and data accuracy.
  • Ultra-Wide Printing – Up to 8.64″ (219.5 mm)
    Support for extra-wide media makes this printer ideal for oversized labels used in pallet labeling, GHS chemical labeling, or wide-format inventory tags.
  • Color Touchscreen for Ease of Use
    The 4.3” color LCD touchscreen provides a user-friendly interface with intuitive navigation, allowing for quick printer setup, live status monitoring, and minimal training requirements.
  • High-Speed Data Processing & Memory Capacity
    With 256 MB SDRAM and 512 MB Flash, the TTP 384MT handles large print files and complex label formats without lag—essential for time-sensitive, high-volume operations. Expand further with SD card support up to 32 GB.
  • Robust Industrial Build for 24/7 Duty Cycles

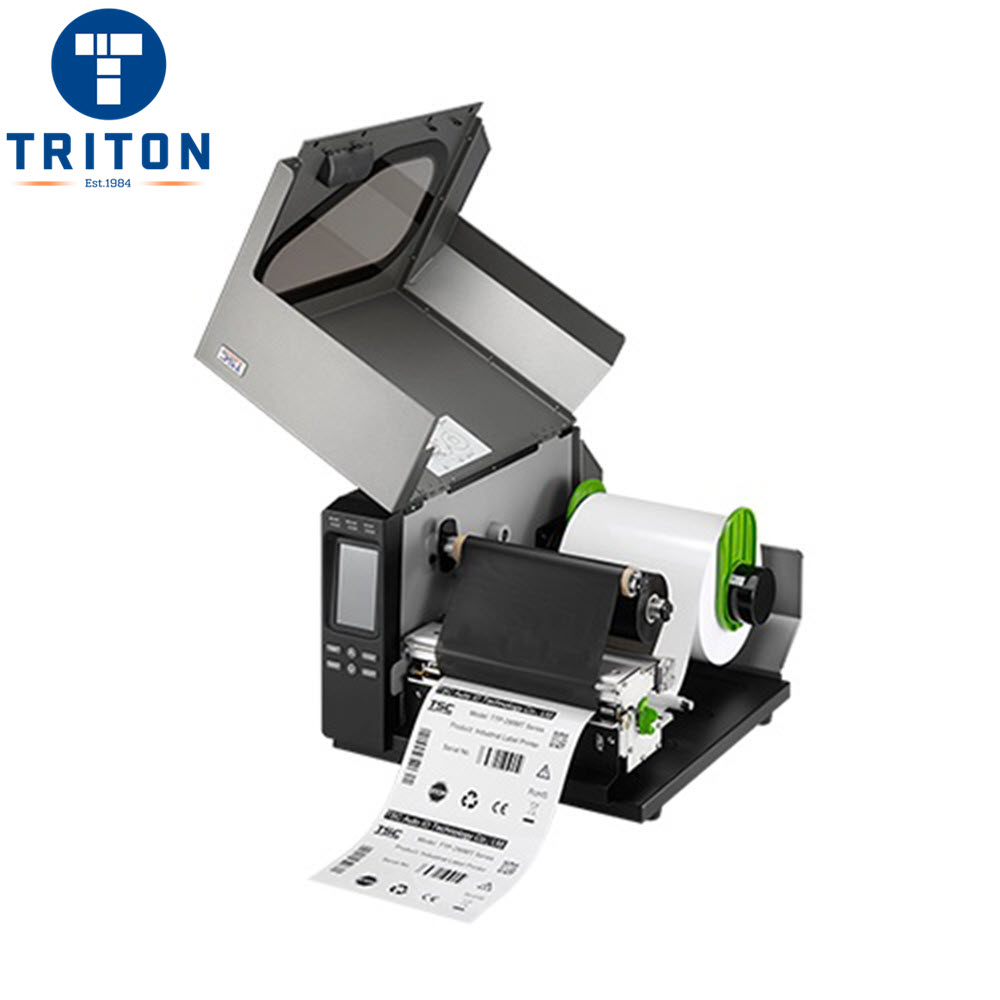

    Built with a die-cast aluminum chassis and sheet metal casing, this model is ready for tough industrial environments. A clear media view window provides fast visual checks of label stock.
  • Comprehensive Connectivity
    Flexible interface options allow seamless integration into legacy and modern systems:

    • USB 2.0
    • USB Host
    • RS-232 Serial
    • Parallel Port
    • Ethernet
    • GPIO
      Optional Bluetooth enables wireless printing from mobile devices or remote stations.
  • Advanced Management with TSC Console
    Configure, monitor, and manage devices from a single interface using TSC Console, or integrate into broader IT ecosystems with ease.
  • TSPL-EZD Firmware Compatibility
    Supports multiple printer languages (TSPL-EZ™, ZPL, EPL, DPL) for seamless drop-in integration with a wide range of label design software and print systems.





Designed for High-Demand Applications

The TTP 384MT is purpose-built for industries that require high-resolution, wide-format label output:

Manufacturing

  • Compliance labeling (e.g. GHS, UL)
  • Work-in-progress tracking
  • Product identification

Shipping & Logistics

  • Pallet labeling
  • Oversized box or crate tags
  • Inventory control

Healthcare

  • Equipment tracking
  • Bulk specimen labeling
  • Laboratory sample ID

Retail

  • Promotional shelf labels
  • Barcode printing for large items
  • Asset management





Product Specifications – Model: 99-135A001-0004 | 99135A0010004

Feature Specification
Print Technology Thermal Transfer & Direct Thermal
Print Resolution 300 dpi (12 dots/mm)
Max Print Width 8.64″ (219.5 mm)
Max Print Length 200″ (5,080 mm)
Print Speed Up to 4 ips (102 mm/s)
Memory 256 MB SDRAM, 512 MB Flash
Expandable Storage SD memory card slot (up to 32 GB)
Display 4.3” Full-Color LCD Touchscreen
Connectivity USB, USB Host, RS-232, Ethernet, Parallel, GPIO
Wireless Connectivity Bluetooth (optional)
Construction Die-Cast Chassis & Sheet Metal Enclosure
Enterprise Management TSC Console
Programming Languages TSPL-EZD (ZPL, EPL, and DPL Compatible)
Printer Class Industrial







Conclusion

The TSC TTP 384MT is the ultimate solution for wide-format, high-resolution label printing in industrial environments. Built for durability, designed for ease of use, and equipped with powerful features, it offers the perfect balance of precision, performance, and productivity for businesses that rely on quality labeling to power their operations.

Wider. Sharper. Smarter. Choose the TTP 384MT for your toughest print demands.





Enquire now about a TSC Global Service Program to suit this printer!

TSC Global Service Program

TSC TTP 384MT Spec Sheet

TSC Console User Manual

**This printer will take Thermal Transfer (needs a ribbon) & Direct Thermal Labels**

See more Direct Thermal labels for this printer!

See more Thermal Transfer labels for this printer!

Media Specifications:
Internal Label Capacity 8.2“ (208.3 mm) OD
Max. Media Width 9.5″ (241.3 mm)
Media Type Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)
Media Core Diameter 3″ (76.2 mm)
Min. Label Length 1″ (25.4 mm)

See Thermal Transfer Ribbons for this printer!

Ribbon Specifications:
Max. Ribbon Length 600 m
Ribbon Width 4.3“ – 10“ (110 mm – 254 mm)
