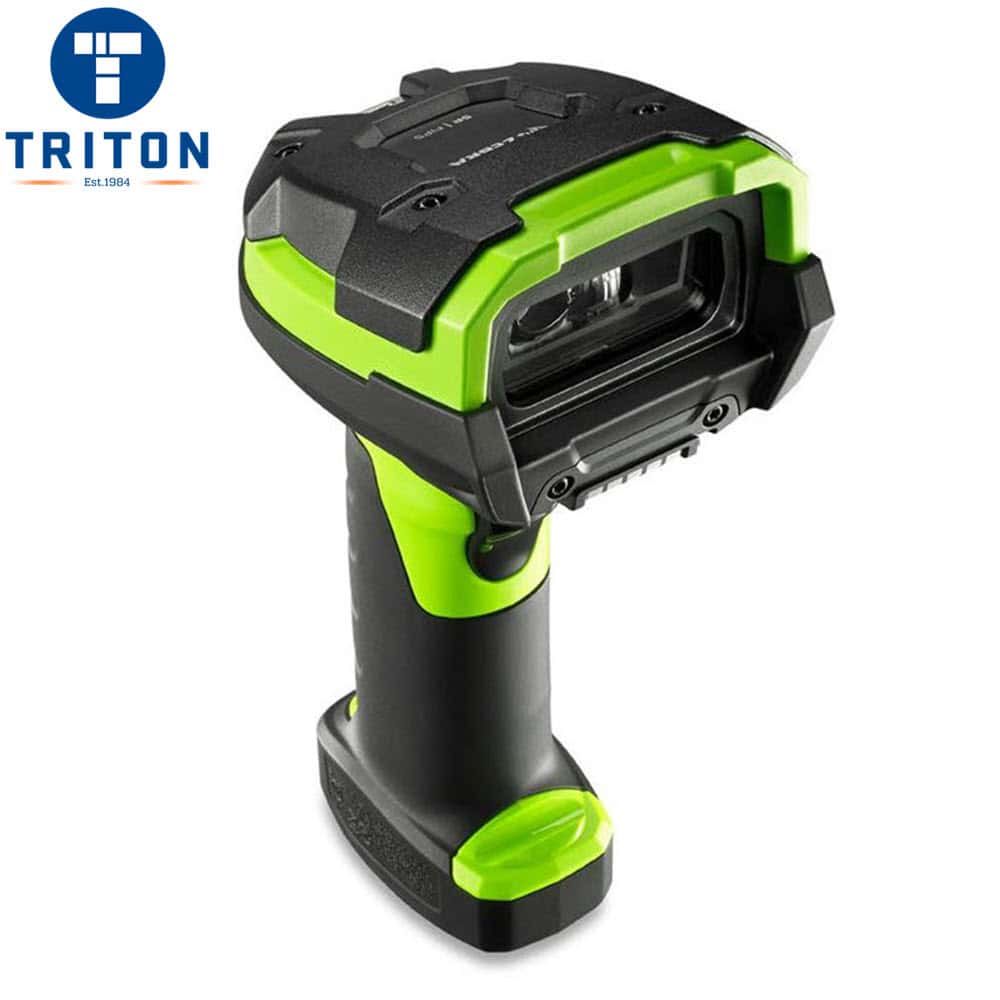

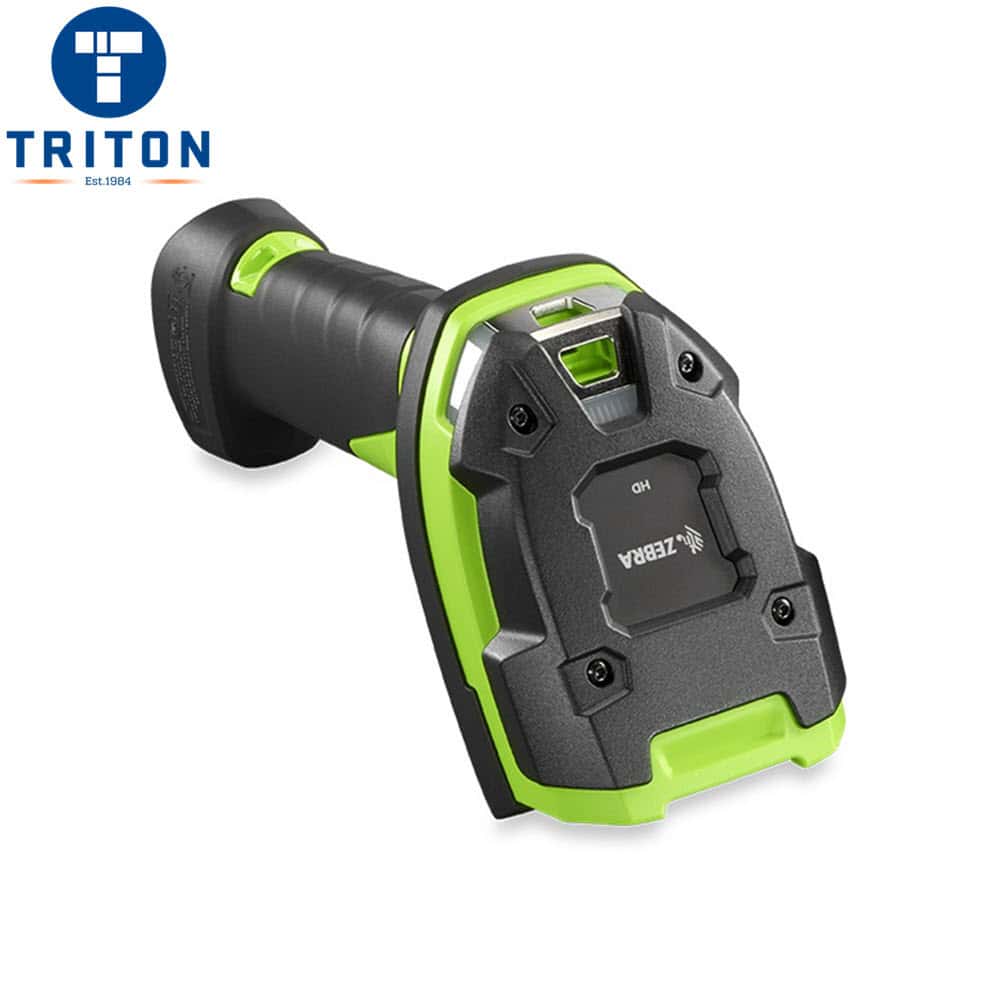

Zebra DS3678-SR Ultra-Rugged Wireless 2D Barcode Scanner Kit – Standard Range + Cradle + USB
Model: DS3678-SR3U42A0SFW
Includes:
- DS3678-SR0F003VZWW Scanner (Green, Standard Range)

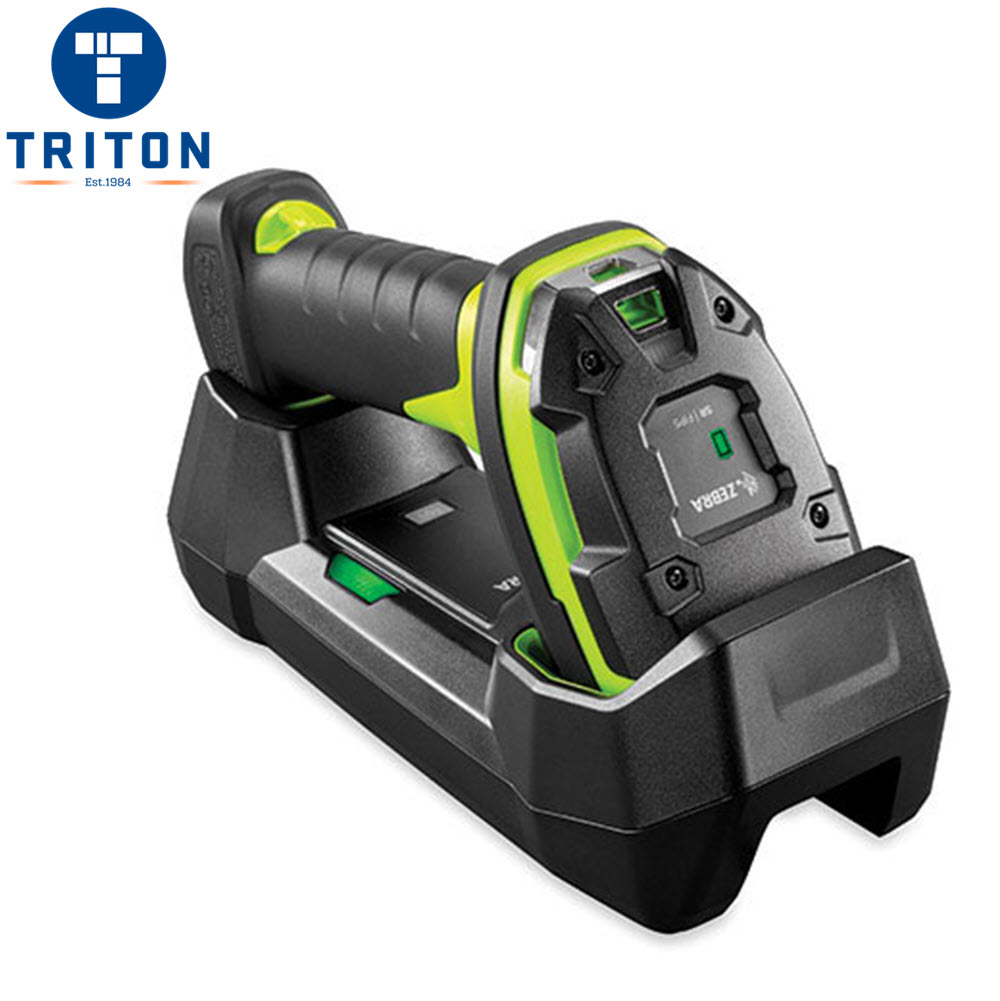

- STB3678-C100F3WW Bluetooth Charging/Communication Cradle
- CBA-U42-S07PAR Shielded USB Cable (12V Power Support)
- PWR-BGA12V50W0WW Power Supply
- CBL-DC-451A1-01 DC Cable
Note: CAIEC Line Cord sold separately. For forklift VMC installations, use cable CBA-RF2-C09ZAR.
🛠 Extreme Reliability Meets Ultimate Cordless Convenience
The Zebra DS3678-SR is part of Zebra’s 3600 Series—the industry standard for ultra-rugged barcode scanning in the world’s most challenging environments. Built to withstand dust, water, extreme drops, and sub-zero temperatures, the DS3678-SR delivers standard range scanning performance with cordless Bluetooth flexibility.
It’s ideal for high-volume workflows such as packing, shipping, inventory control, and WIP scanning—anywhere durability, speed, and precision are non-negotiable.
🔍 Scan It All, Fast and Accurately
- Captures 1D and 2D barcodes on labels and screens
- Reads even damaged, dirty, poorly printed, or shrink-wrapped codes
- Standard Range (SR) engine optimized for scanning up to 1.5 m (5 ft)
- Multi-code capture allows scanning of up to 20 barcodes simultaneously
📡 Wireless Freedom with Industrial Strength
- Bluetooth Class 1 provides up to 100 m (330 ft) of wireless range
- Cradle supports charging and data transmission via USB
- Point-to-point and multipoint modes
- Vibration motor delivers instant feedback for successful scans in noisy environments
💪 Unrivaled Durability
- Scanner Sealing: IP67 – waterproof and dustproof
- Cradle Sealing: IP65 – tough enough for industrial use
- Drop Rated: Survives drops from 2.4 m (8 ft) onto concrete
- Tumble Rated: 5,000 tumbles at 1 m (3.3 ft)
- Operating Temperature: -30°C to +50°C (-22°F to 122°F)
📦 What’s in the Kit
Component | Description |
---|---|
Scanner | DS3678-SR0F003VZWW (2D, Standard Range) |
Cradle | STB3678-C100F3WW (Bluetooth Charging Base) |
USB Cable | CBA-U42-S07PAR (Shielded, 12V P/S Supported) |
Power Supply | PWR-BGA12V50W0WW |
DC Power Cable | CBL-DC-451A1-01 |
CAIEC line cord must be added separately for AC power use.
🧊 Perfect For
- 📦 Warehouse & Distribution Centers – Fast scanning of labels, parcels, and totes
- 🏭 Industrial Manufacturing – Real-time production tracking and WIP scans
- 🚛 Transport & Logistics – Dockside and cross-dock operations
- ❄️ Cold Chain Storage – Operates reliably in freezers and refrigerated environments
📐 Specifications Overview
Feature | Specification |
---|---|
Scan Engine | 2D Area Imager – Standard Range (SR) |
Scan Range | Up to 1.5 m (5 ft) |
Connectivity | Bluetooth + USB (via cradle) |
Drop Spec | 2.4 m (8 ft) |
Tumble Rating | 5,000 tumbles @ 1 m |
Sealing | Scanner: IP67 / Cradle: IP65 |
Operating Temp | -30°C to +50°C (-22°F to +122°F) |
Colour | Industrial Green |
Form Factor | Handheld, Ultra-Rugged |
🔑 Why Choose the Zebra DS3678-SR Kit?
With premium-grade scanning, next-level durability, and cordless mobility, the Zebra DS3678-SR Kit is built to excel in mission-critical operations. Whether on the warehouse floor, in a freezer, or mounted on a forklift, it keeps your team scanning efficiently—no matter the environment.
Zebra DS3678-SR – Rugged, Reliable, and Ready for Anything.
Enquire now about a Zebra OneCare Maintenance Plan suit this scanner!
